KPRO 5000 LPH Commercial RO Plant
Advanced Water Purification System
The KPRO 5000 LPH Commercial RO Plant from Krystal Pure RO Systems is a high-capacity industrial water purification system engineered to deliver 5,000 liters of purified water per hour. Equipped with advanced multi-stage filtration, PLC-based automation, high-rejection RO membrane technology, and industrial-grade components, the KPRO 5000 is designed for continuous operation in demanding commercial and industrial environments.
This system provides reliable production of high-quality purified water by effectively removing dissolved salts, suspended solids, bacteria, viruses, heavy metals, and other contaminants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KPRO 5000 LPH |
| Production Capacity | 5,000 Liters Per Hour |
| Daily Production Capacity | Up to 120,000 Liters Per Day |
| Technology | Reverse Osmosis (RO) |
| Operation | Fully Automatic PLC Controlled |
| Pretreatment System | Sand Filter & Carbon Filter |
| Filter Vessel Size | FRP 2162 Pressure Vessels |
| Cartridge Filters | 5 Micron & 1 Micron Filters |
| RO Membranes | 5 High-Rejection RO Membranes |
| Membrane Housing | FRP / SS Pressure Housings |
| Recovery Rate | Up to 65–75%* |
| TDS Rejection | 95–99% |
| High Pressure Pump | Vertical Multistage SS Pump |
| Product Water Tank | Food Grade Stainless Steel Tank |
| Power Supply | 415V AC, 3 Phase, 50 Hz |
| Automation | PLC-Based Control Panel |
| Skid Structure | Heavy Duty SS/MS Powder Coated Frame |
*Depending on feed water quality.

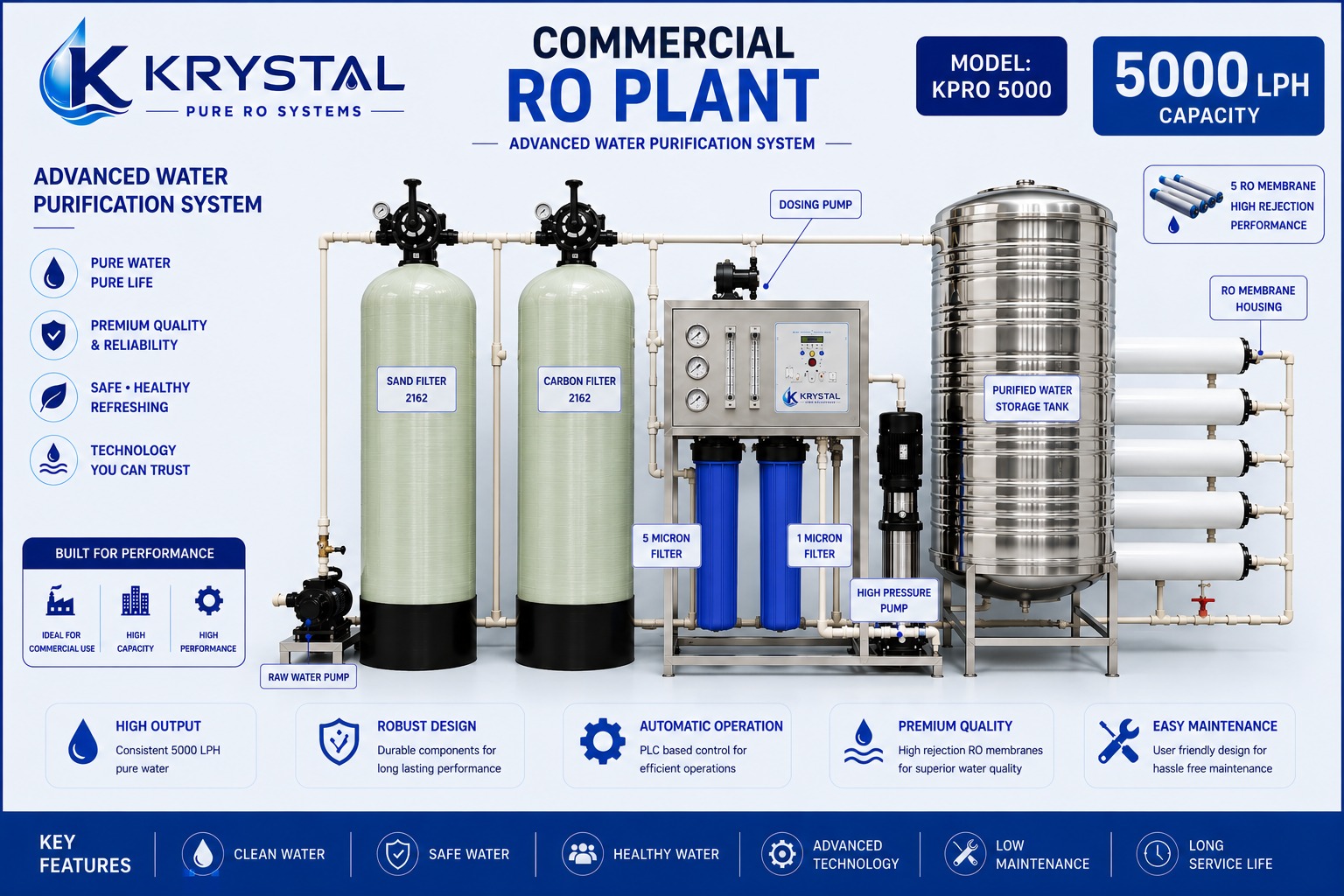

System Components
Raw Water Feed Pump
- Provides consistent feed water flow.
- Maintains stable operating conditions.
Multi Grade Sand Filter (2162)
- Removes turbidity, suspended solids, dirt, and sediments.
- Protects downstream equipment from clogging.
Activated Carbon Filter (2162)
- Removes chlorine, odor, color, and organic contaminants.
- Enhances RO membrane life.
Chemical Dosing System
- Prevents membrane scaling and fouling.
- Improves overall system performance.
5 Micron Cartridge Filter
- Removes fine suspended particles.
- Protects RO membranes.
1 Micron Cartridge Filter
- Provides additional fine filtration.
- Ensures superior water quality before RO treatment.
High Pressure Pump
- Generates required pressure for membrane operation.
- Delivers consistent water production.
Five RO Membrane System
- High-rejection thin-film composite membranes.
- Removes dissolved salts, bacteria, viruses, heavy metals, and contaminants.
- Produces high-purity water with excellent recovery.
Stainless Steel Product Water Tank
- Hygienic storage of purified water.
- Corrosion-resistant and food-grade construction.
Key Features
- ✔️ 5,000 Liters Per Hour Production Capacity
- ✔️ Five High-Rejection RO Membranes
- ✔️ Fully Automatic PLC Control System
- ✔️ Industrial Grade Construction
- ✔️ High Recovery and Low Water Wastage
- ✔️ Stainless Steel Purified Water Storage Tank
- ✔️ Continuous 24x7 Operation Capability
- ✔️ Energy Efficient Design
- ✔️ Easy Maintenance and Monitoring
- ✔️ Long Equipment Life
Water Quality Performance
Purification Efficiency
- TDS Reduction: Up to 99%
- Bacteria Removal: >99%
- Virus Removal: >99%
- Heavy Metal Reduction: Excellent
- Chlorine Removal: Excellent
- Odor & Color Removal: Excellent
Output Water Quality
- Crystal Clear Water
- Improved Taste and Odor
- Safe for Drinking and Process Applications
- Consistent Quality Output
Applications
Industrial Applications
- Pharmaceutical Manufacturing
- Engineering Industries
- Electronics Manufacturing
- Chemical Processing Units
- Textile Industries
Commercial Applications
- Hotels & Resorts
- Shopping Malls
- Corporate Campuses
- IT Parks
- Commercial Buildings
Healthcare Facilities
- Hospitals
- Medical Colleges
- Healthcare Institutions
Educational Institutions
- Universities
- Schools
- Residential Campuses
Food & Beverage Industry
- Food Processing Plants
- Beverage Manufacturing Units
- Commercial Kitchens
- Bottling Facilities
Performance Advantages
High Production Capacity
Produces up to 120,000 liters of purified water per day, making it ideal for large-scale operations.
Advanced Filtration Technology
Combines Sand Filter, Carbon Filter, 5 Micron Filter, 1 Micron Filter, Chemical Dosing, and Five RO Membranes for superior purification.
Automated Operation
PLC-based control system enables reliable and efficient plant operation with minimal operator intervention.
Low Maintenance
User-friendly design ensures easy servicing and reduced downtime.
Long-Term Reliability
Built with premium industrial components for years of dependable performance.
